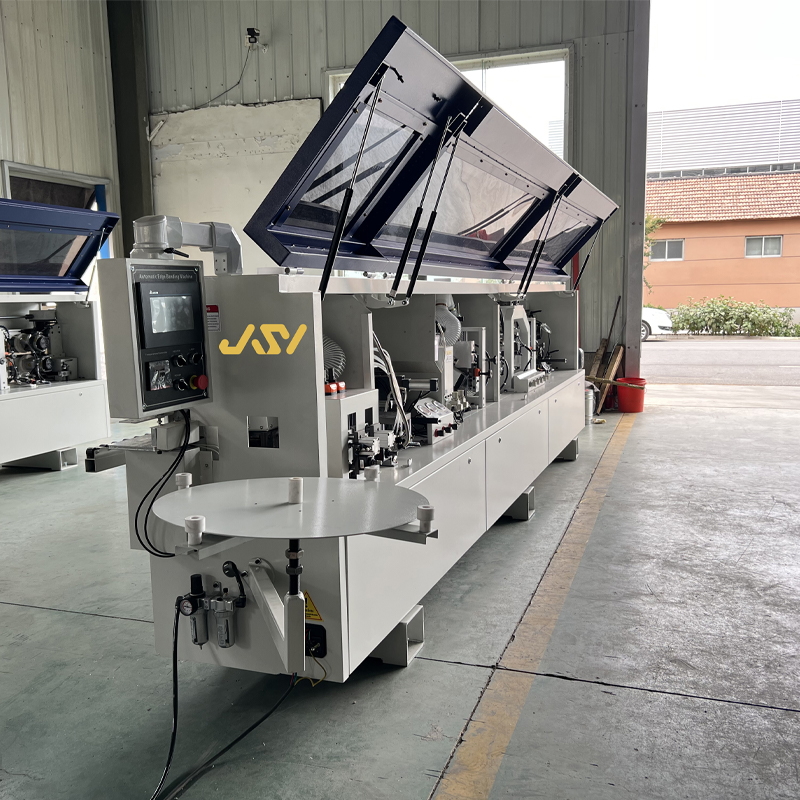

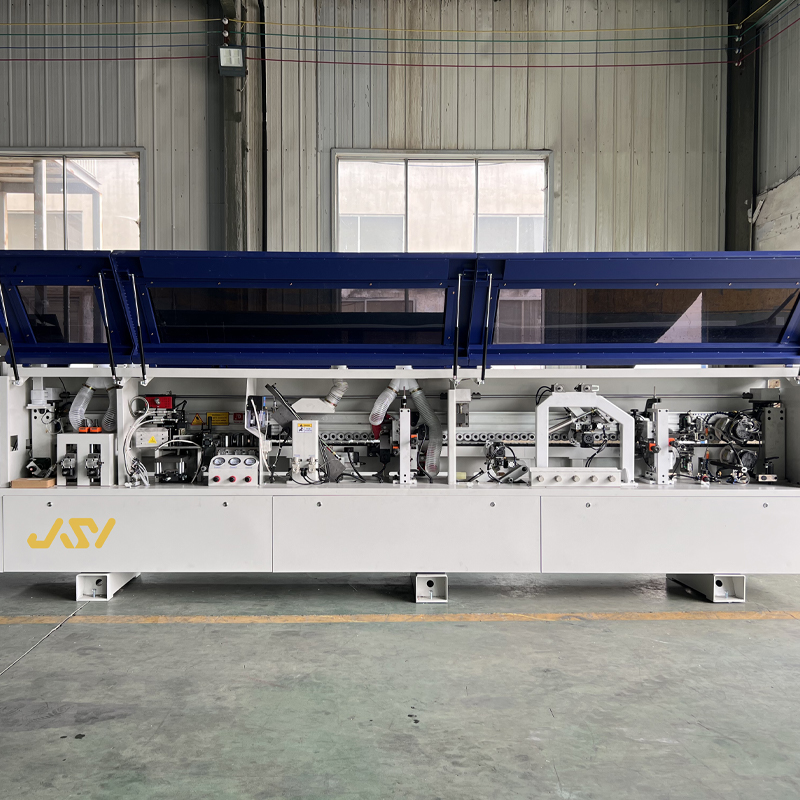

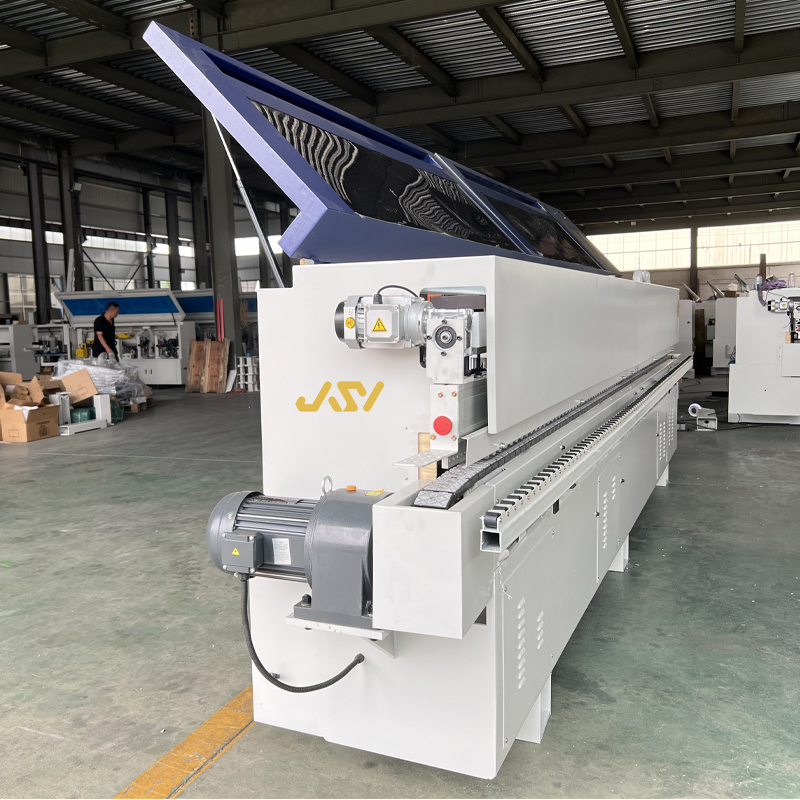

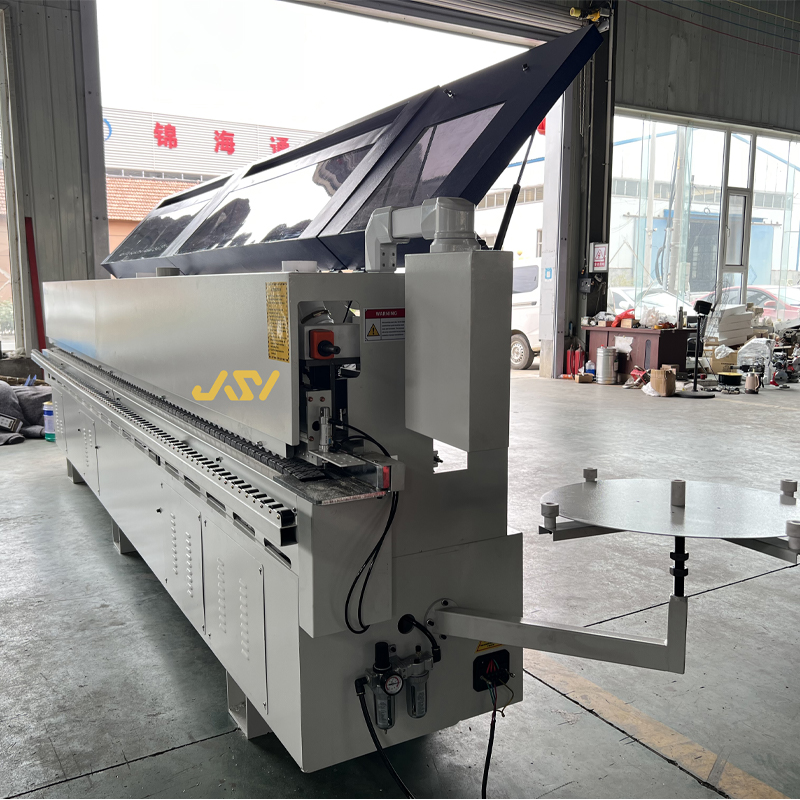

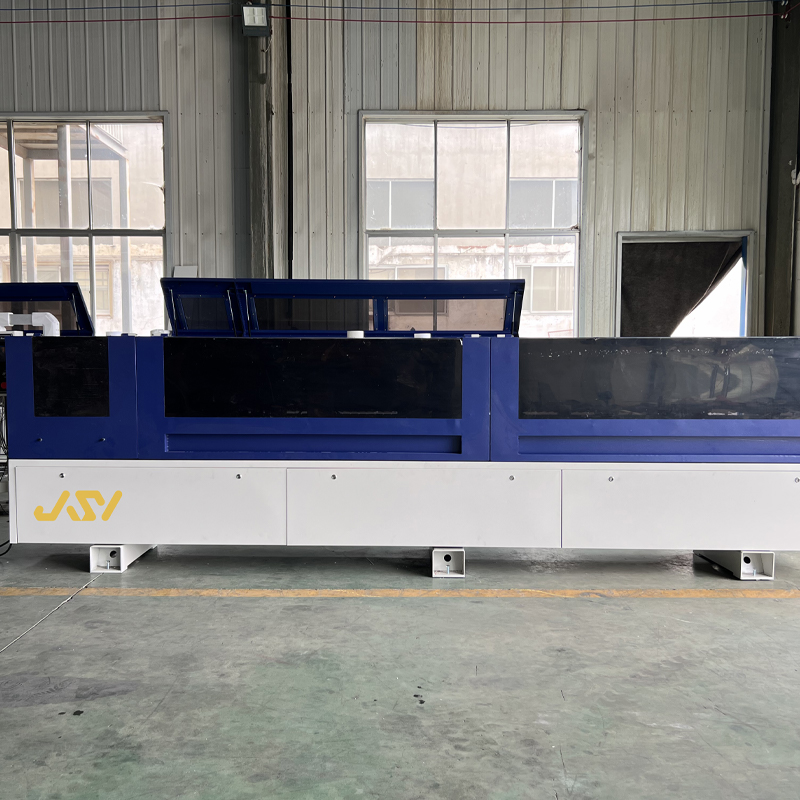

JSY700S — Seven-Function Automatic Edge Banding Machine
JSY700S Automatic Edge Banding Machine — Seven Functions with Pre-Milling for a Seamless Bond

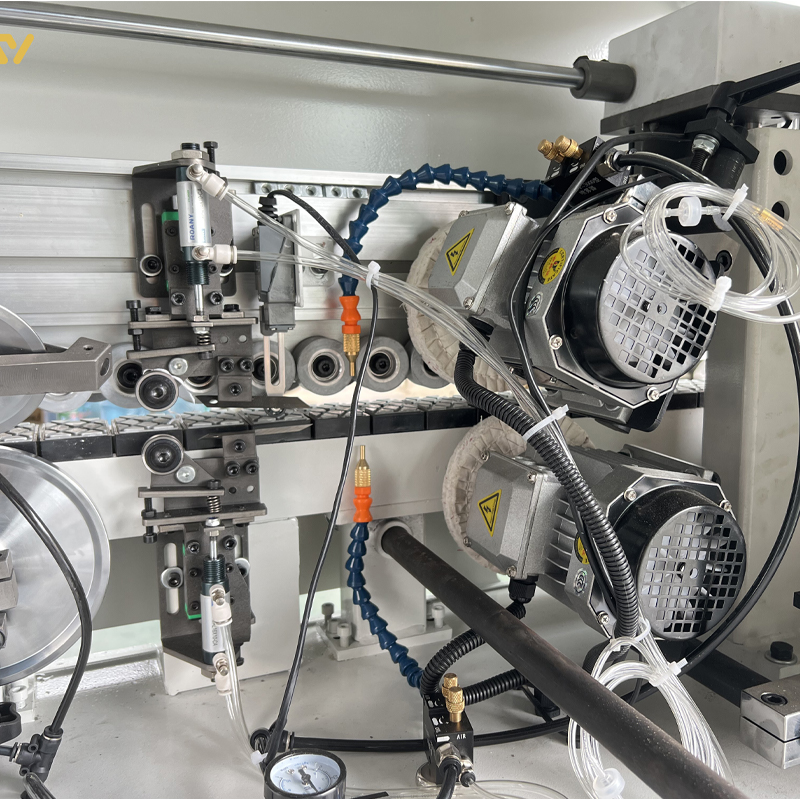

The JSY700S adds the Pre-Milling station — the key upgrade for superior edge quality. Pre-milling cleans up saw marks and chips on the panel edge before banding, which is what makes a seamless, zero-gap glue line possible, especially on recycled or slightly chipped boards. Full process: Pre-Milling, Gluing, End Trimming, Fine Trimming, Scraping, Soft Scraping and Buffing.
Key Specifications
| Parameter | Value |
| Overall Dimension | 5000 × 680 × 1400 mm |
| Machine Weight | 1700 kg |
| Working Voltage | 380V / 50Hz / 3P (customizable) |
| Total Power | 13.5 kW |
| Feed Speed | 18–24 m/min (adjustable) |
| Panel Thickness | 10–60 mm |
| Min. Panel Width × Length | 50 mm × 70 mm |
| Working Pressure | 0.7 MPa |
| Edge Banding Thickness | 0.3–3 mm |
Why Choose the JSY700S

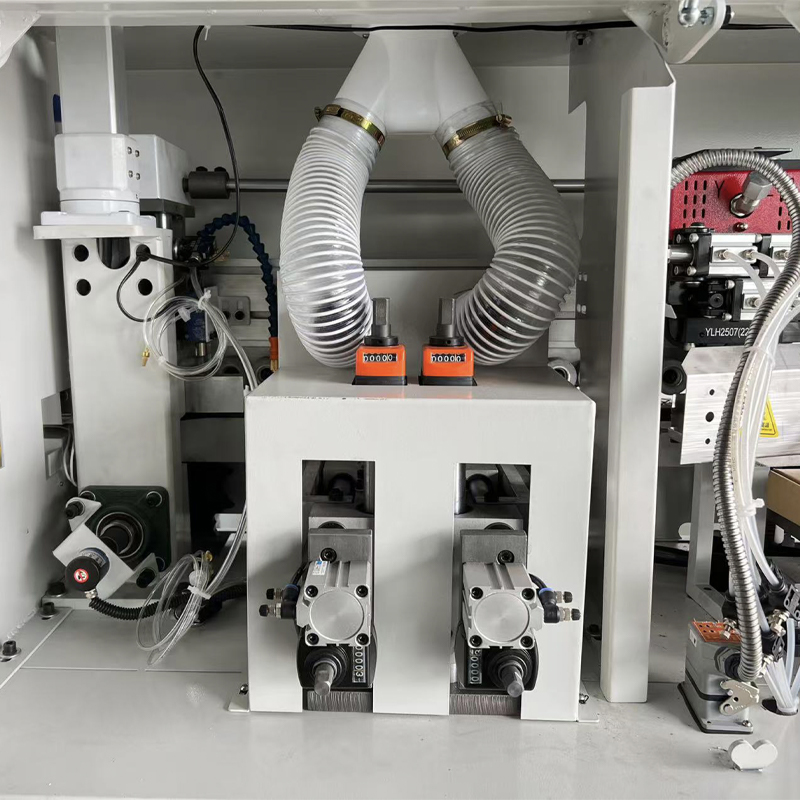

Pre-milling station — removes edge chips and saw marks for an invisible glue line
5 m heavy-duty frame, 1700 kg — rock-solid stability for consistent results at higher speeds
Higher working pressure (0.7 MPa) — firmer, more reliable pressure across all stations
Built for volume — the right machine for factories running full shifts of cabinet and wardrobe production
Factory-direct from Qingdao with one-year warranty, professional after-sales team and spare parts at cost price.
Contact us today for a factory-direct quotation (EXW / FOB / CIF).
